Australian Water Filtration Solutions - Products
The Outback Compact 2
Send an e-mail enquiry to Australian Water Filtration Solutions

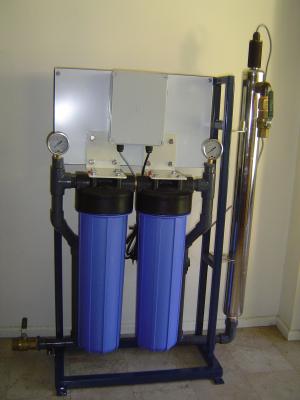

THE COMPACT 2
The Compact 2 is designed for larger homes with 2 bathrooms and runs at 65lpm or 3900ltrs per hour. The unit sits on a powder coated galvanized frame making it ideal for external use. There is a 5 micron sediment cartridge and a 5 micron carbon filter for pre-filtration providing crystal clear water. The unit is fitted with two pressure gauges to show a variance in pressure and initiate cartridge change.
The UV unit is made from 316 stainless steel and fitted with a 40 watt lamp for a maximum bacteria kill rate. All pipe work is done in grey PVC and a flow controller is fitted so that the unit will operate efficiently as per design. There is a alarm fitted on the control box letting you know when the lamp has failed and needs replacing. There is a one year limited warranty on the unit.
SPECIFICATIONS
Designed Flow Rate: 65lpm
Height: 1170mm
Length: 820mm
Width: 320mm
Maximum Pressure: 690kpa
Inlet Size: 25mm
Outlet Size: 25mm
UV Dimension: 895 x 62mm
UV Vessel: 316 stainless
Filter Housings: 2 - 20”x 4”
Pre-filters: 5 micron sediment, 5 micron carbon
For Design, Service and Parts Contact 1300 858 H20 (426)
Rain Water Filter and UV Sterilizer
