Industrial Grade Cantilever Slide Gates
Send an e-mail enquiry to Create Security Pty Ltd
The most advanced slide gate in the world!!
RED n GREEN LED status lights opening and closing
Gate travel speed 940mm per sec opening and 200-300mm per/sec closing speed.
Ramp up ramp down speed control of gate.
Full curtain array photo-electric beam detection cross the opening span secure and non secure sides.
316 Marine grade stainless steel motor housing enclosures.
An external LED input/output mimic panel. Third Party Risk Safety Assessed 100% passed, 147Kn push and pull a 9.5m cantilever gate

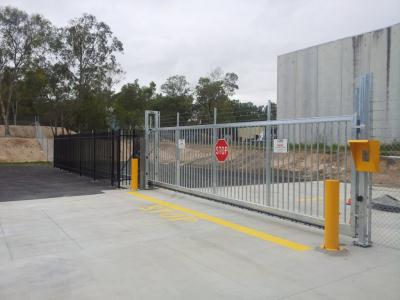

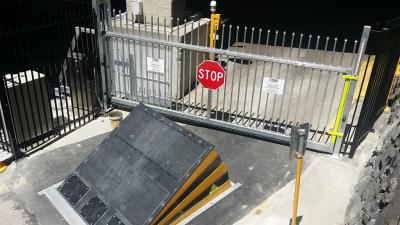

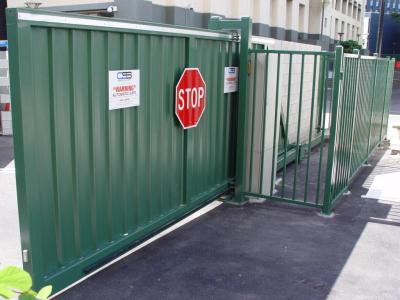

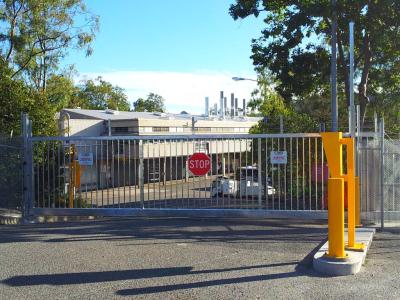

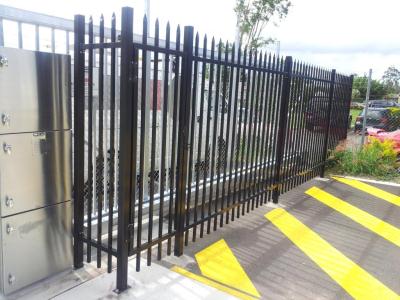

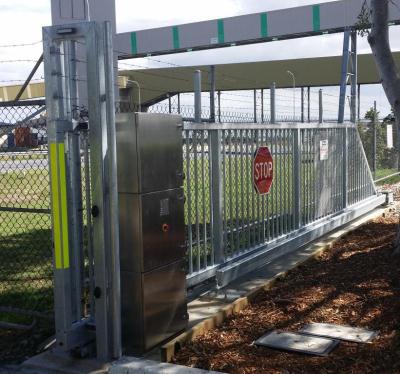

Our Cantilever Gate system is designed and engineered to Create Security's precise calculations and standards with a strong emphasis on safety. Each Cantilever Gate comprises of the following unique design elements.The gate main support portal. The gate leaf. The gate rear runner rail and Closing post. The combination of gate design elements and concrete footing allows the gate to roll out over the relevant road opening, without tipping or sagging, basically travelling in free air. Up to 12 metre road widths (for a single gate) are standard within our product range. Our cantilever gate system is completely self supporting needs no road rails, tracks or overhead supports. Design Features Each CR8-Cantilever gate system is designed with automation features as standard. An industrial three-phase drive motor, PLC control logic, frequency inverter and on-board limit controller, are some of the highly advanced products utilised within the product range. The PLC system allows for special features and auxiliary equipment to be added, including access control, traffic management and warning signs. An extensive array of safety devices and features form part of our standard product offering. We believe safety should not be an option and have designed the CR8-Cantilever gate system to comply with all OH&S requirements having been fully risk assessed for workplace compliance, without doubt the best gate in the world in performance, reliability, we can offer a 3 year warranty.
